Ultima™ Bath Transfer

Starting at $4,995.00



The Ultima™ Transfer System is designed to significantly reduce the effort required by the parent or caregiver to transfer a child or adult into a tub for bathing.

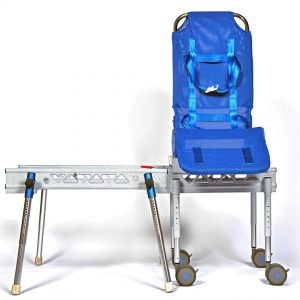

Our Ultima™ Transfer System has three components: a mesh seating system for comfort, a rolling base that is used for the initial portion of the transfer and a tub base (2 options) that when connected to the rolling base engages the shuttle function for transfer.

The Tub Base options are a Folding Base, which features two legs in the tub and two outside of the tub and folds for storage purposes. The Compact Base, places all four legs inside the tub, but does not have a folding feature.

The Attached Rolling Base has a sturdy base for use in a roll-in shower.

The Ultima™ Transfer System is available in two sizes S/M or L/XL and comes standard with a mesh seat, a tub base, a rolling base, two positioning belts and anti-tippers.

BTUF-BB2Foldable-tube-base1920BTUC-SG2BTUC-8135M-LLMesh-Stingray GrayMesh-Lionfish LavenderMesh-Beach Bubble Blue

Features

Comfort/Functionality

The Ultima Bath Transfer seating system combines a mesh seating area with a stainless steel frame, and multiple adjustment angles which team to create a comfortable environment for the user along with the necessary functionality and durability the parent or caregiver desires.

Safety

Both tub bases (Foldable and Compact) are constructed with high-grade aluminum and stainless steel, which provides exceptional strength and durability. The Slider Safe Auto-Stop Safety System ensures that the chair will not come off the base.

Ease of Use

Connecting the rolling base to the tub base is simple and easy. All it requires it to line up the interlocking tubes and to secure a latch. No tools are required.

Sizing

Weight CapacityBack Angle Adj.Calf Angle Adj.Seat DepthInside Seat WidthBack HeightCalf LengthSeat Angle (w/Model #5126)Seat Height RangeRolling Base Dims.Rolling Base - Inside WidthRolling Base - Height ClearanceTub Base Width at TopTub Base Footprint WidthTub Base Footprint DepthTub Base Clearance Height RangeOverall Length (Transfer System)
Ultima Medium w/Foldable Base (BTUF-8130M or BTUS-8130M)160 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚13"15"27"13"Up to 10˚23.5", 24.5", 25.5", 26.5", 27.5"21.5"W x 21"D16"15.5", 16.5", 17.5", 18.5", 19.5"31"28" - 30"31" - 33"13.5" - 19" ( .5" increment)52"
Ultima Large w/Foldable Base (BTUF-8140L or BTUS-8140L)180 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚15"17"31"15"Up to 10˚23.5", 24.5", 25.5", 26.5", 27.5"21.5"W x 21"D16"15.5", 16.5", 17.5", 18.5", 19.5"31"28" - 30"31" - 33"13.5" - 19" ( .5" increment)52"
Ultima Medium w/Compact Base (BTUC-8131M or BTUS-8130M)160 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚13"15"27"13"Up to 10˚23.5", 24.25", 25", 25.75", 26.5"20"W x 17"D17"15.5", 16.25", 17", 17.75", 18.5"20"18"17"14", 14.75", 15.5", 16.25", 17"53"
Ultima Large w/Foldable Base (BTUC-8141L or BTUS-8140L)180 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚15"17"31"15"Up to 10˚23.5", 24.25", 25", 25.75", 26.5"20"W x 17"D17"15.5", 16.25", 17", 17.75", 18.5"20"18"17"14", 14.75", 15.5", 16.25", 17"53"

Accessories

Head Support

BCZ-A8875: $155

Custom designed and made of foam, provides additional positioning support for the head.

Lateral Support

BCZ-A8830: $155

Foam cushion that is added to the chair’s base, provides enhanced torso positioning.

Pelvic Positioning Belts

BCZ-A8835 / BCZ-A8836 (M/L): $65-$245

Available in two options a standard version and an upgraded rapid dry version which offers two sizes (4″ and 5″), both belts aid with improving posture and safety.

Detachable Armrests

BTZ-A5051: $495

Easy to attach and remove, the armrests provide four different height adjustments and enhanced comfort/stability.

Seat Angle Bracket

BTZ-A5126: $120

Provides three options for seat height adjustment (2½”, 3″ or 3½”) which also enhances pelvic stability and postural support.

Custom Bent Calf

BTU-C8130 / BTU-C8140: $90

Padded Abductor

BCUZ-A8818: $110

Attaches easily to the chair’s base, to improve hip alignment and stabilize seating posture.

Adjustable Bridge

BTV-A5104 / BTV-A5105: $895

For use with the Compact Base option only

Fixed Bridge

BTV-A5109 / BTV-A5111: $465-$530

For use with the Compact Base option only

BTZ-A5125 / BTZ-A5525: $360

Available in two options: with 22° footplates or 90° footplates. Both are easily removable and flip-out of the way.
