Ultima™ Access Bath Transfer and Commode

Starting at $5,250.00

The Ultima™ Access Transfer System, like its sister system the Ultima™ Transfer System, is designed to significantly reduce the effort required by the parent or caregiver to transfer a child or adult into a tub for bathing.

Its combination of ComfortMesh and polyurethane seating area combine to create an opening in the chair that enhances bathing access and also allows the system to function as a commode.

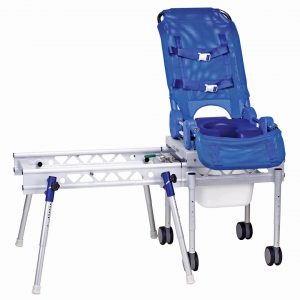

Our Ultima™ Access Transfer System has three components the seating system (described above), a rolling base that is used for the initial portion of the transfer and a tub base (2 options) that when connected to the rolling base engage the shuttle function for transfer.

The Tub Base options are a Folding Base, which features two legs in the tub and two outside of the tub and folds for storage purposes. The Compact Base places all four legs inside the tub, but does not have a folding feature.

The Ultima™ Transfer System is available in two sizes S/M or L/XL and comes standard with a ComfortMesh/Polyurethane seat, a tub base, a rolling base, two positioning belts and anti-tippers.

UltimaAccess-Transfer-Fold-Front1920UltimaAccess-Transfer-Fold-tub1920UltimaAccess-Transfer-Fold-Girl1920UltimaAccess-Transfer-Compact-Tub1920Ultima-Access-Compact-Front1920

Features

Comfort/Functionality

The Ultima™ Access Bath Transfer is designed with comfort, functionality, and durability in mind. It features a combination of ComfortMesh and Polyurethane seating area, bases made of stainless steel and high-grade aluminum that when combined with its multiple Adjustment Angles, create a great solution for assistive bathing.

Safety

Both tub bases (Foldable and Compact) are constructed with high-grade aluminum and stainless steel, which provides exceptional strength and durability. The Slider Safe Auto-Stop Safety System ensures that the chair will not come off the base.

Ease of Use

Connecting the rolling base to the tub base is simple and easy. All it requires it to line up the interlocking tubes and to secure a latch. No tools are required.

Sizing

Weight CapacityBack Angle Adj.Calf Angle Adj.Seat DepthInside Seat WidthBack HeightCalf LengthSeat Angle (w/Model #5126)Seat Height RangeRolling Base Dims.Rolling Base Inside WidthRolling Base Height ClearanceTub Base Width at TopTub Base Footprint WidthTub Base Footprint DepthTub Base Clearance Height RangeOverall Length (Transfer System)
Ultima Access Medium w/Foldable Base (BTUAF-5130M or BTUAS-5130M)160 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚14"14"26"13.5"Up to 10˚26", 27", 28", 29", 30"21.5"W x 21"D16"15.5", 16.5", 17.5", 18.5", 19.5"31"28" - 30"31" - 33"13.5" - 19" (.5" increment)52"
Ultima Access Large w/Foldable Base (BTUAF-5140L or BTUAS-5140L)180 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚17"16"30"15.5"Up to 10˚26", 27", 28", 29", 30"21.5"W x 21"D16"15.5", 16.5", 17.5", 18.5", 19.5"31"28" - 30"31" - 33"13.5" - 19" (.5" increment)52"
Ultima Access Medium w/Compact Base (BTUAC-5131M or BTUAS-5130M)160 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚14"14"26"13.5"Up to 10˚26", 27", 28", 29", 30"21.5"W x 21"D16"15.5", 16.5", 17.5", 18.5", 19.5"31"28" - 30"31" - 33"13.5" - 19" (.5" increment)52"
Ultima Access Large w/Compact Base (BTUAC-5141L or BTUAS-5140L)180 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚17"16"30"15.5"Up to 10˚26", 27", 28", 29", 30"21.5"W x 21"D16"15.5", 16.5", 17.5", 18.5", 19.5"31"28" - 30"31" - 33"13.5" - 19" (.5" increment)52"
Ultima Access Medium w/Attached Rolling Base (BTUAS-5135M)160 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚14"14"26"13.5"Up to 10°23.5", 24.5", 25.5", 26.5", 27.5"21"W x 19"D16"17", 18", 18", 20", 21"N/AN/AN/AN/AN/A
Ultima Access Large w/Attached Rolling Base (BTUAS-5145L)180 lbs.0˚, 30˚, 60˚, 90˚0˚, -30˚, -60˚17"16"30"15.5"Up to 10°23.5", 24.5", 25.5", 26.5", 27.5"21"W x 19"D16"17", 18", 18", 20", 21"N/AN/AN/AN/AN/A

Accessories

Head Support

BCZ-A8875: $155

Custom designed and made of foam, provides additional positioning support for the head.

Lateral Trunk Support

BCZ-A8830: $155

Foam cushion that is added to the chair’s base, provides enhanced torso positioning.

Pelvic Positioning Belts

BCZ-A8835 / BCZ-A8836 (M/L): $65-$245

Available in two options a standard version and an upgraded rapid dry version which offers two sizes (4″ and 5″), both belts aid with improving posture and safety.

Detachable Armrests

BTZ-A5051: $495

Easy to attach and remove, the armrests provide four different height adjustments and enhanced comfort/stability.

Seat Angle Bracket

BTZ-A5126: $120

Provides three options for seat height adjustment (2½”, 3″ or 3½”) which also enhances pelvic stability and postural support.

Open-Front Vinyl Seat

BTUA-A5566 (M/L): $680

Accessory-compatible vinyl cushion for mounting hip positioning supports

Swing-Away Lateral Brackets

BTUA-A5572: $220

Provide hip positioning and swings out of the way for transfer.

Lateral Seat Pads

BTUA-A5581 (M/L): $195-$215

Available in two sizes for use with Swing-Away Lateral Brackets.

Adjustable Bridge

BTV-A5104 / BTV-A5105: $895

For use with the Compact Base option only

Fixed Bridge

BTV-A5109 / BTV-A5111: $465-$530

For use with the Compact Base option only

Footrests

BTZ-A5125 / BTZ-A5525: $360

Available in two options: with 22° footplates or 90° footplates. Both are easily removable and flip-out of the way.
